JX-600S(CE)(UL)
600 kg
Load Capacity
607.5mm
Rotation Diameter
Rotary Lifting
Jacking Type
Two-wheel differentil
Drive Mode

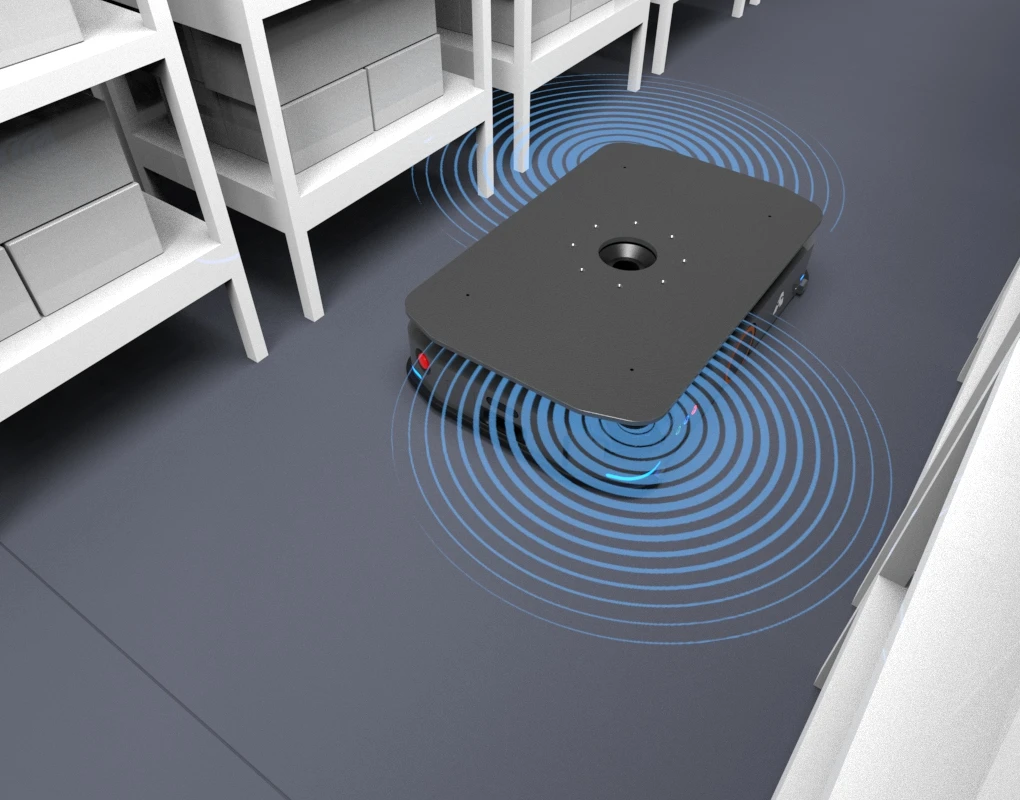

Dual LiDAR System 360° Full Coverage
Equipped with advanced bidirectional LiDAR-SLAM technology, enabling autonomous path planning and dynamic obstacle avoidance without reliance on reflectors, QR codes, or magnetic tapes. Maximizes collision prevention to ensure equipment and personnel safety.

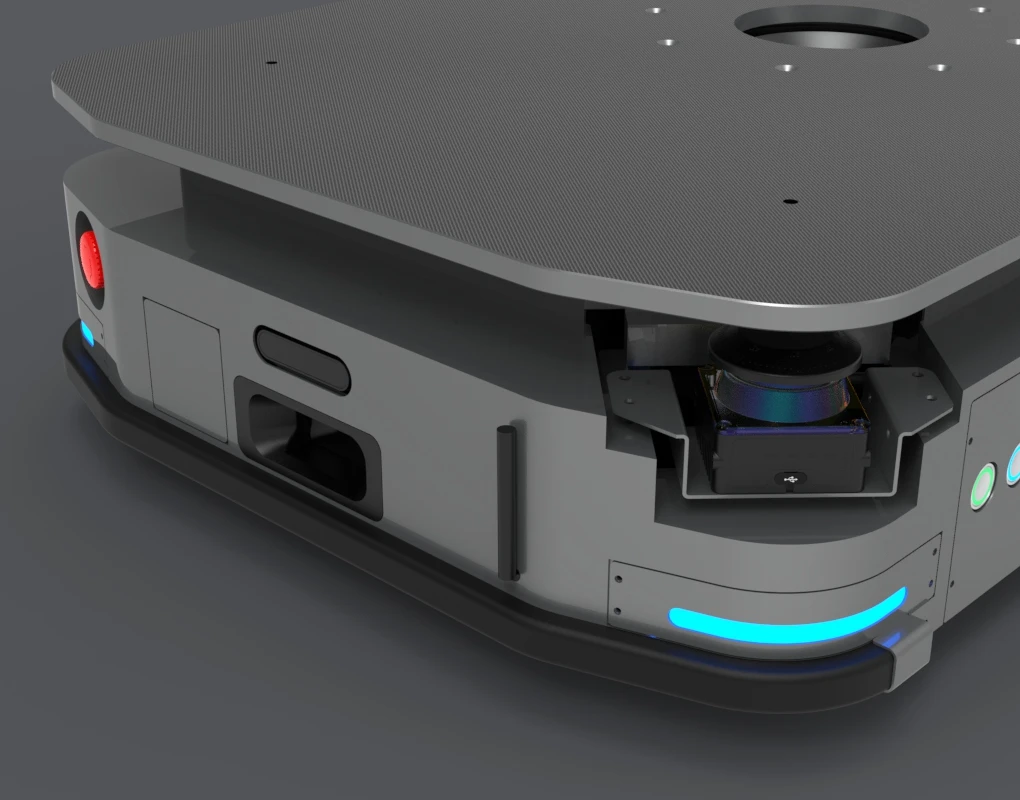

2 × Safety Laser Scanners
- 3 meter protective field range;
- 10 meter warning field range;
- 8 fields, 275 degree scanning angle;
- 24VDC supply voltage simple, space-saving design for mobile platforms;
- Fast and cost-efficient mounting and commissioning.
Precision, punctuality, safety

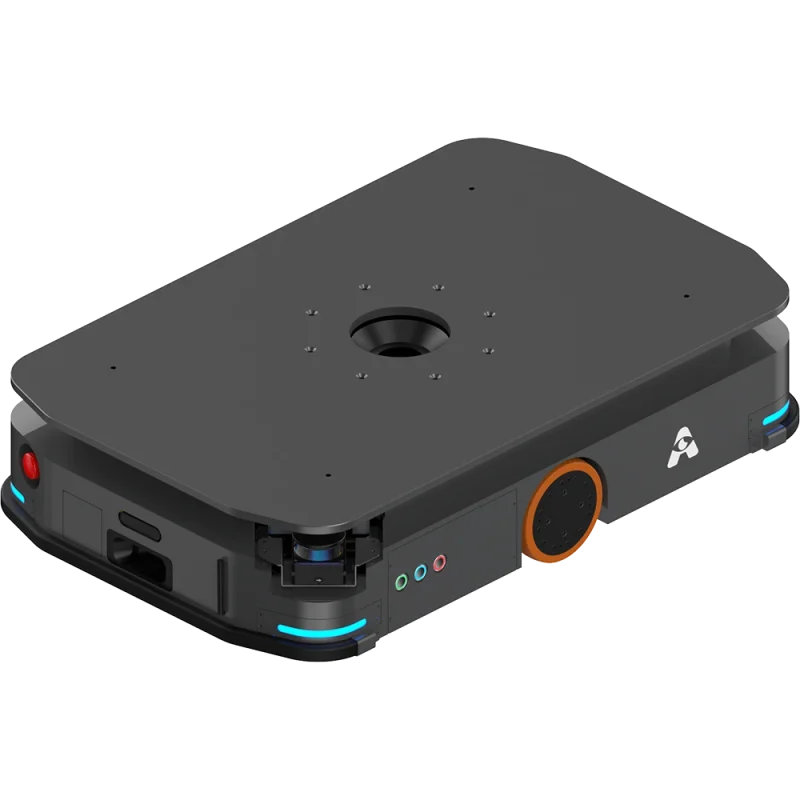

Laser SLAM Safety Lifting Robot
Dramatically reduce costs and improve handling efficiency
CE Safety Certified, Outstanding Performance & Excellent Safety Standard by Design
Obtion CE certification (ISO 3691-4:2020) and other certifications.
±5 mm Accuracy, Laser SLAM Navigation
SLAM navigation accuracy of ±5 mm, without reflectors.
600 kg Load Capacity
Optional 600 kg load models, catering to the load requirements in multiple scenarios.
Charge 2 h, Full-loaded Endurance 8 h
The charging pile is optional for 40 A quick charge, 1 hours of charging for 8 hours of running.

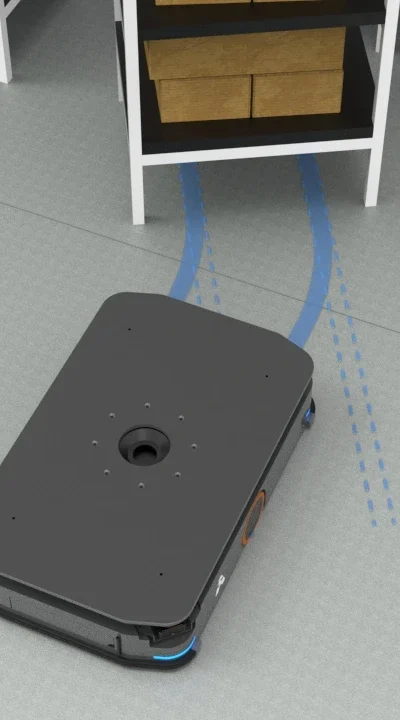

Single-sided ≥7 cm Wide Area Rack Identification
With unilateral ≥7 cm distance wide, the AGV could accurately recognize the rack, adjust its position, and drive precisely into it, successfully lift the goods.
Multi-Layer Safety System Ensures Safe Human-Robot Collaboration
More Features
——————
Low-profile powerhouse, invisible workshop assistant.
600 kg load capacity
Massive Load, Effortless Moves – Power Meets Precision!

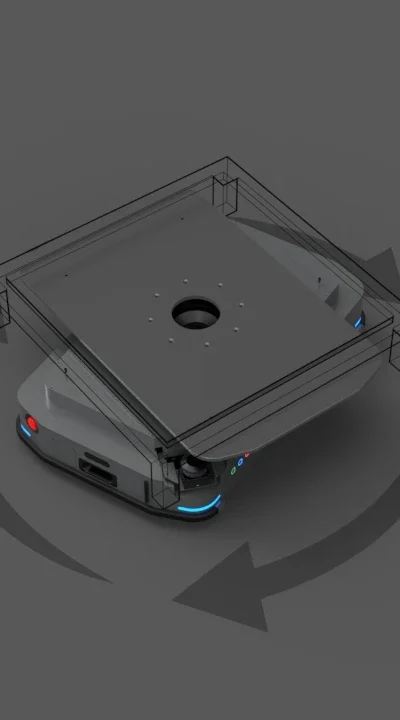

360° Rotatory Jacking
Preserves Load Bearing Alignment Throughout Navigation or Turning.
Adaptive to Various Shelf Sizes
Meet the needs of multiple industries and types of storage and handling
Fleet Management System
manage dispatching system for mobile robots and factory automation logistics equipment in a unified manner.
Get Rid of Empty Load Anxiety
Consider Hitchhiking and Pre-order Task Dispatching
High Adaptation
Dynamic Global Collaborative Planning
What You See is What You Operate
Panoramic Business And Scheduling Simulation
Keep Track of The Whole Progress
Visualisation of The Task Process
Intuitive and Simple UI Interaction
Mobile Terminal APP Configu ration Customisation
Easy to Handle
Robot Alert Handling
Parameter Specification
-None ● Standard ○ Optional
| Basic parameters | |
|---|---|
| Product name | Laser SLAM Safety Lifting Robot |
| Navigationtype | Laser SLAM |
| L × W × H | 1120 × 722 × 250 mm |
| Rotation diameter | 607.5 mm |
| Weight (with battery) | 245 ± 10 kg |
| Maximum load capacity | 600 kg |
| Chassis ground clearance | 25 mm |
| Lifting platform dimensions | 1090 × 690 mm |
| Jacking platform dimensions | 5 ± 0.5 s |
| Navigation laser scanning height | 192 mm (navigation) / 192 mm (obstacle avoidance) |
