JX-1000
1000 kg
Load Capacity
1015 mm
Rotation Diameter
Standard Lifting
Jacking Type
Two-wheel Differential
Drive Mode
Dual LiDAR System 360° Full Coverage
Equipped with advanced bidirectional LiDAR-SLAM technology, enabling autonomous path planning and dynamic obstacle avoidance without reliance on reflectors, QR codes, or magnetic tapes. Maximizes collision prevention to ensure equipment and personnel safety.
Multi-Layer Safety System Ensures Safe Human-Robot Collaboration
Precision, punctuality, safety
Rotary Lifting Robot
PowerfulPerformance, Unmatched Valur for Money

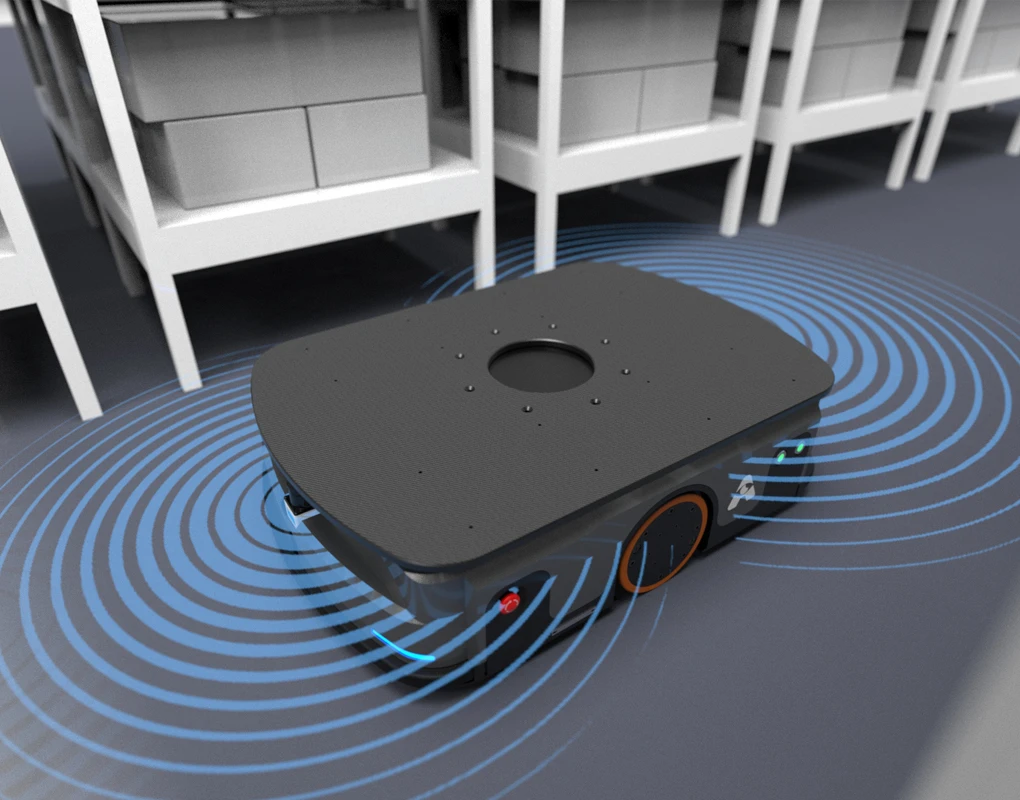

Dual Laser: Double the Reliability and Safety
Equipped with advanced navigation laser at the front and obstacle avoidance laser at the rear, out robot ensures a safety operation experience like never before.

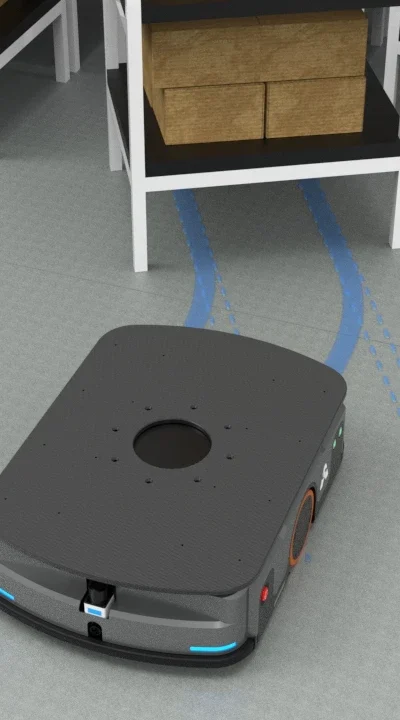

3 Types of Navigation, High Precision Up to ±5 mm
Positioning accuracy can reach ±5 mm. Supports multiple navigation method, such as SLAM, QR code and laser reflector. It adapts to various scenarios with the perfect navigation solution.
Unmatched Speed and Efficiency at 2m/s
Maximum running speed of 1.5 m/s when fully loaded, and 2 m/s when unloaded.

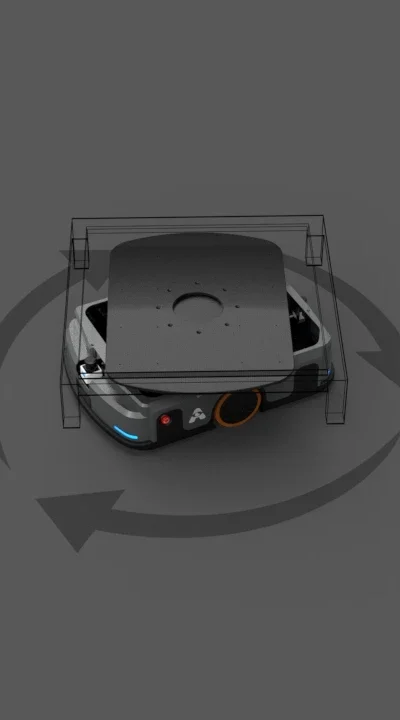

Spin Function: Flexibility for Pick-up, Drop-off and Handling
The AMR body and lifting plate can rotate separately, it effortlessly navigates in tight spaces, such as narrow aisles and densely packed shelves.

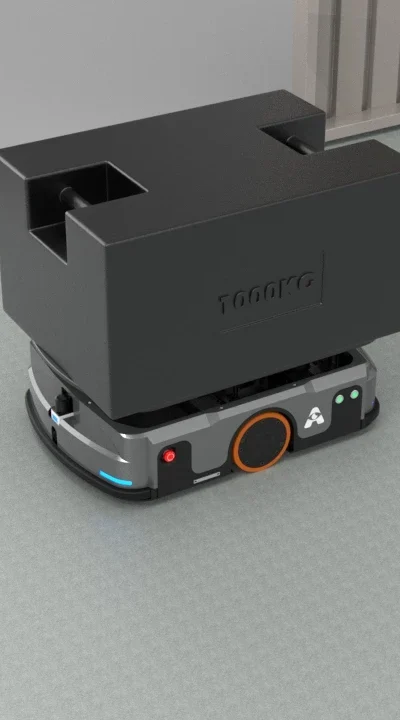

Effortlessly Handle 1000 kg: Conquer Heavy Lifting with Ease
With a remarkable load capacity of 1000 kg, our compact-sized robot effortlessly tackles various transportation needs of different scenarios, from e-commerce sorting to material handling and even call feeding.
More Features
——————
Low-profile powerhouse, invisible workshop assistant.
1000 kg load capacity
Massive Load, Effortless Moves – Power Meets Precision!
360° Rotatory Jacking
Preserves Load Bearing Alignment Throughout Navigation or Turning.
Adaptive to Various Shelf Sizes
Meet the needs of multiple industries and types of storage and handling
Fleet Management System
manage dispatching system for mobile robots and factory automation logistics equipment in a unified manner.
Get Rid of Empty Load Anxiety
Consider Hitchhiking and Pre-order Task Dispatching
High Adaptation
Dynamic Global Collaborative Planning
What You See is What You Operate
Panoramic Business And Scheduling Simulation
Keep Track of The Whole Progress
Visualisation of The Task Process
Intuitive and Simple UI Interaction
Mobile Terminal APP Configu ration Customisation
Easy to Handle
Robot Alert Handling
Parameter Specification
-None ● Standard ○ Optional
| Basic parameters | |
|---|---|
| Product name | Laser SLAM Rotary Lifting Robot |
| Navigationtype | Laser SLAM |
| L × W × H | 950 × 650 × 250 mm |
| Rotation diameter | 1015 mm |
| Weight (with battery) | 221 kg |
| Maximum load capacity | 1000 kg |
| Chassis ground clearance | 25 mm |
| Navigation laser scanning height | 194 mm (H1) |
