Laser SLAM

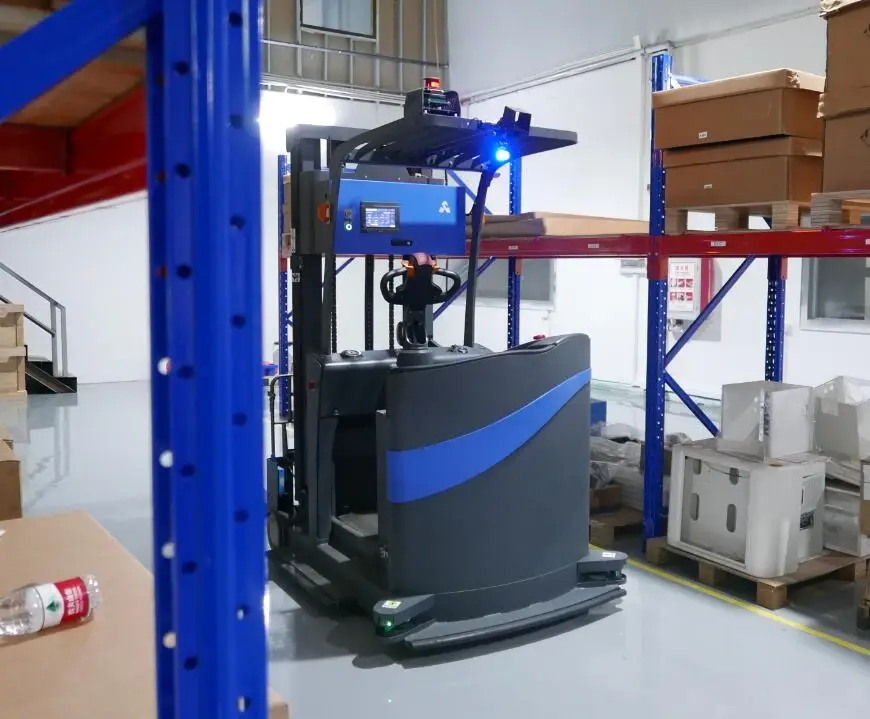

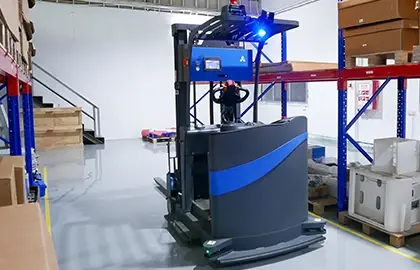

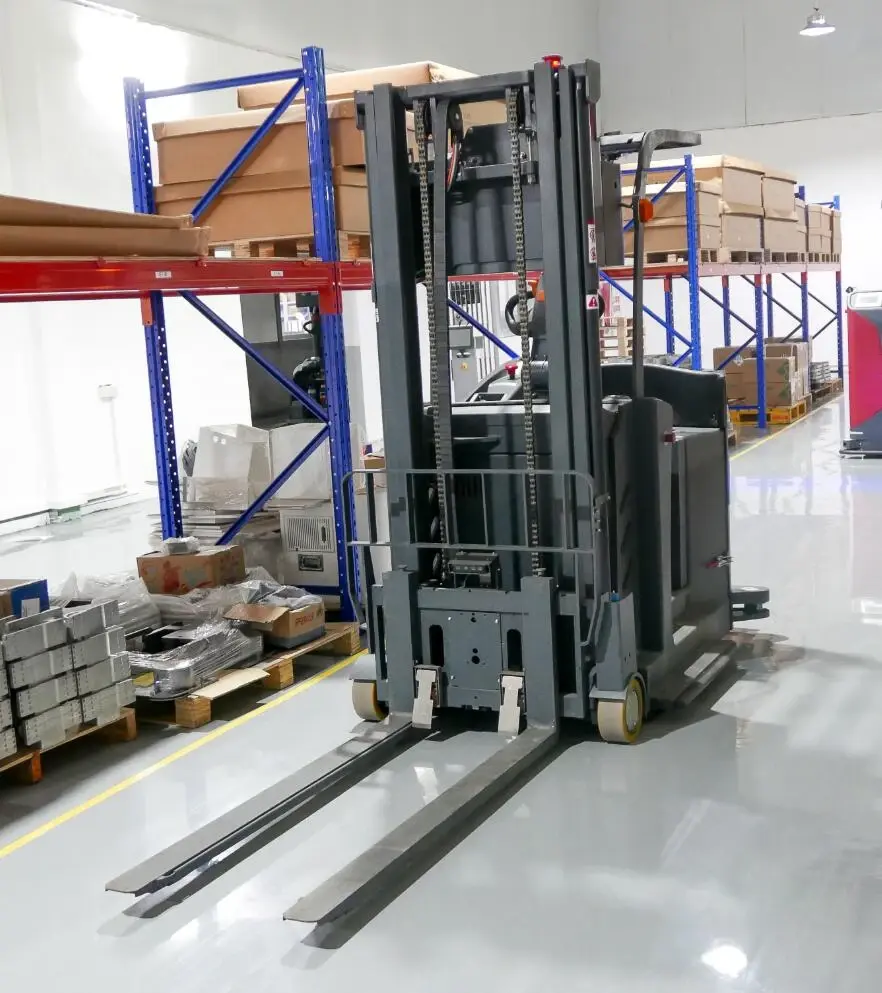

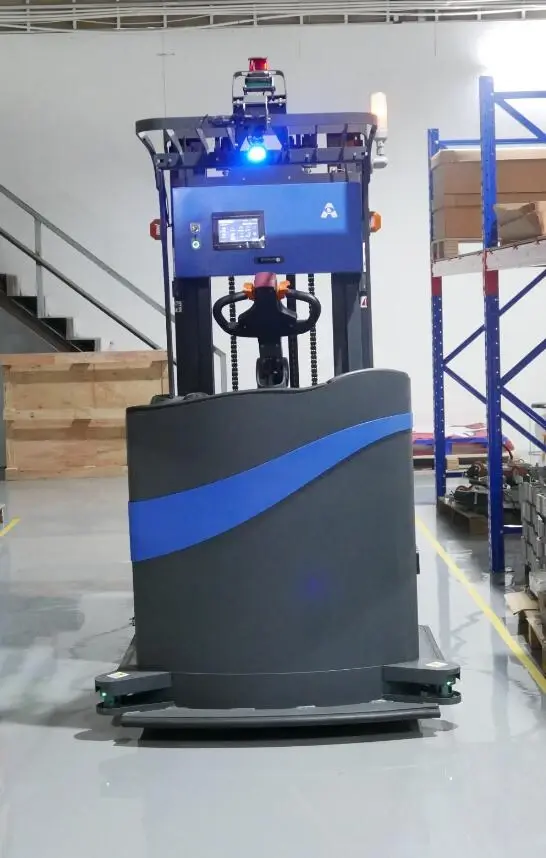

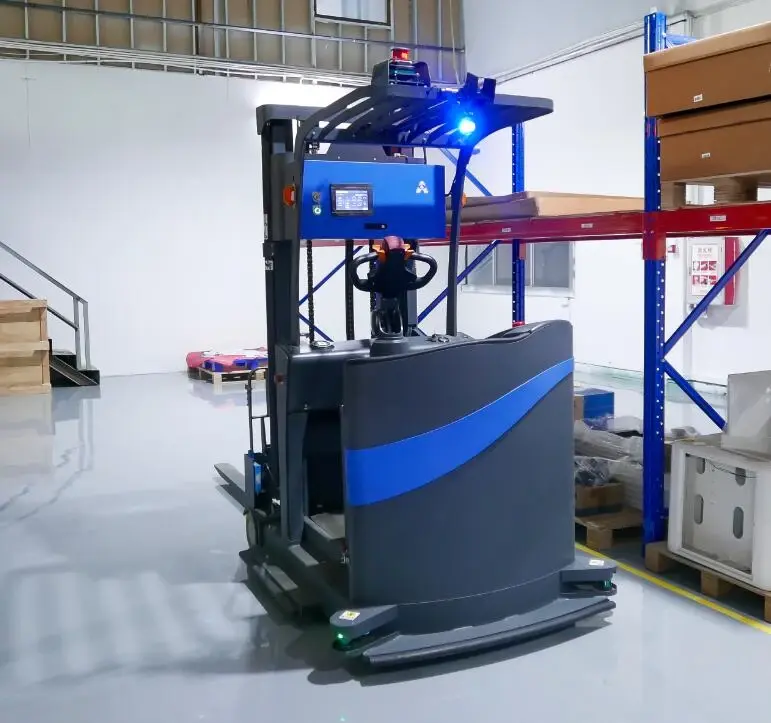

Counterbalanced Autonomous Forklift

FP-1500

Superb Load Capacity, and Powerful Compatibility

Load Type:

SFL-CPD15-T

FP-1500

Smaller size, smarter algorithms!

1500 kg

Rated load capacity

500 mm

Load center distance

3300 mm

Standard lifting height

Open pallet / Closed pallet

Pallet type

Precision, punctuality, safety

Laser SLAM Counterbalanced Autonomous Forklift

Dramatically reduce costs and improve handling efficiency

Real Laser SLAM Navigation

Trackless path navigation without reflectors makes it really convenient to implement.

1.5 T Load Capacity

Goods carrying with a load of 1.5 T; Repeat accuracy of the point: ±10 mm, ±0.5°.

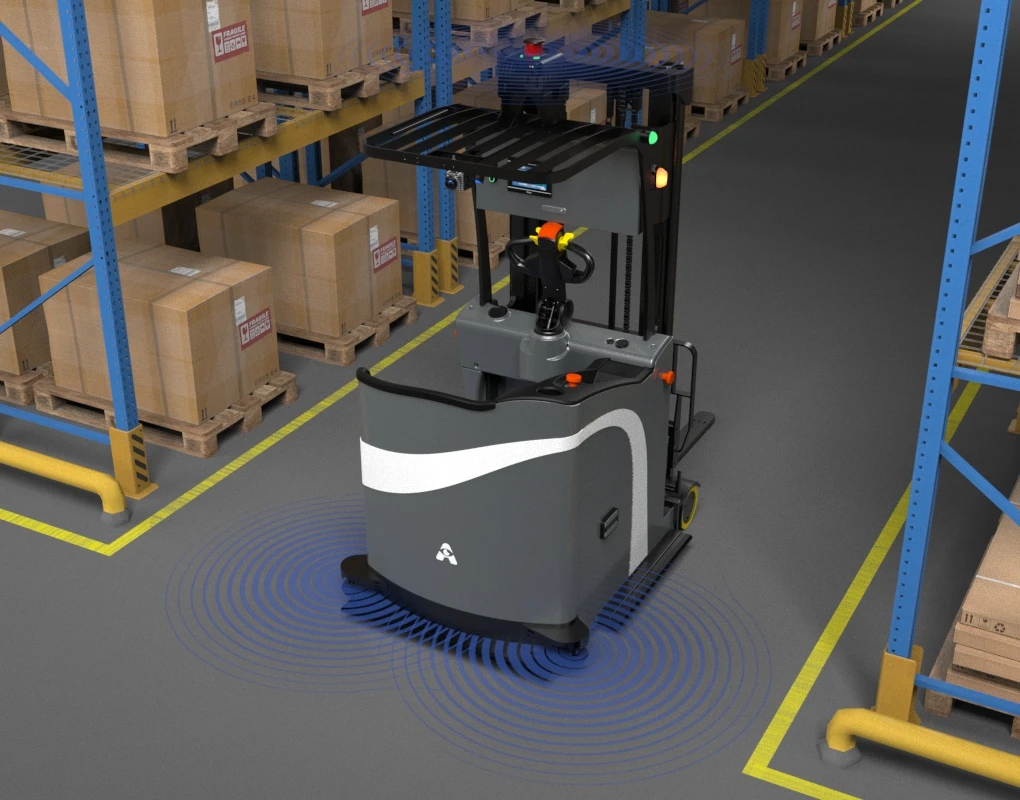

All Round Protection Makes It Really Safe

Obstacle detection laser, distance sensor, 3D camera plane 360° + headspace protection, and multi-dimensional protection.

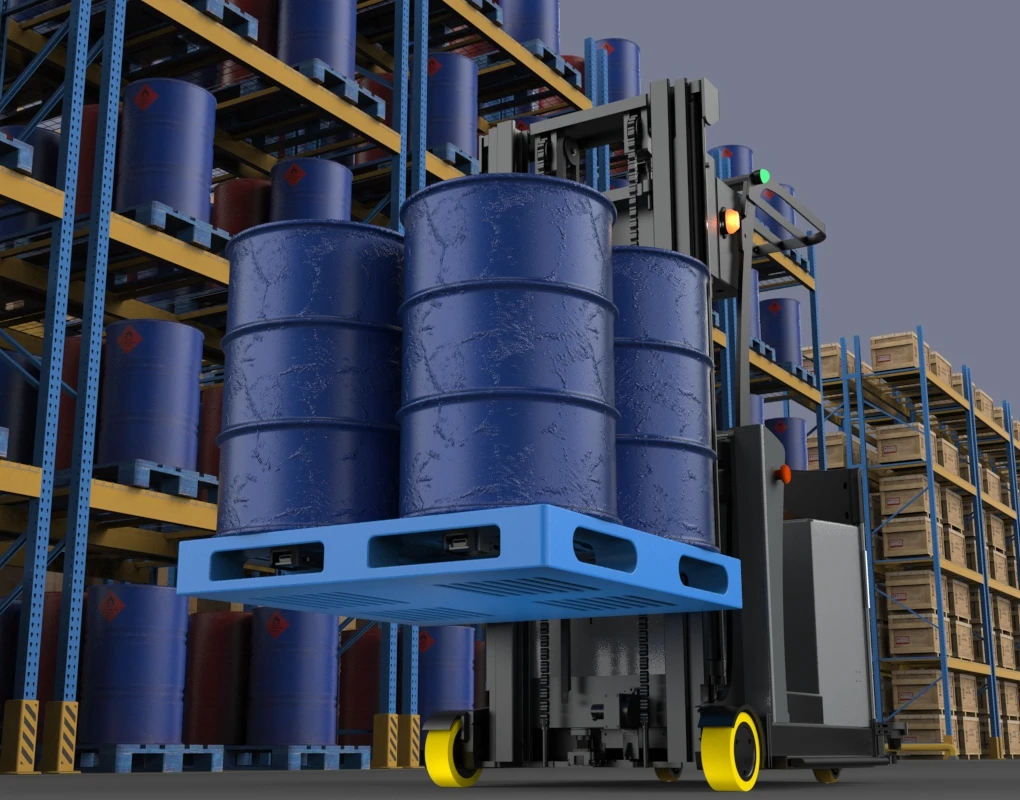

High-precision Recognition

Pallet identification, cage identification and precise goods forking – both efficient and safe.

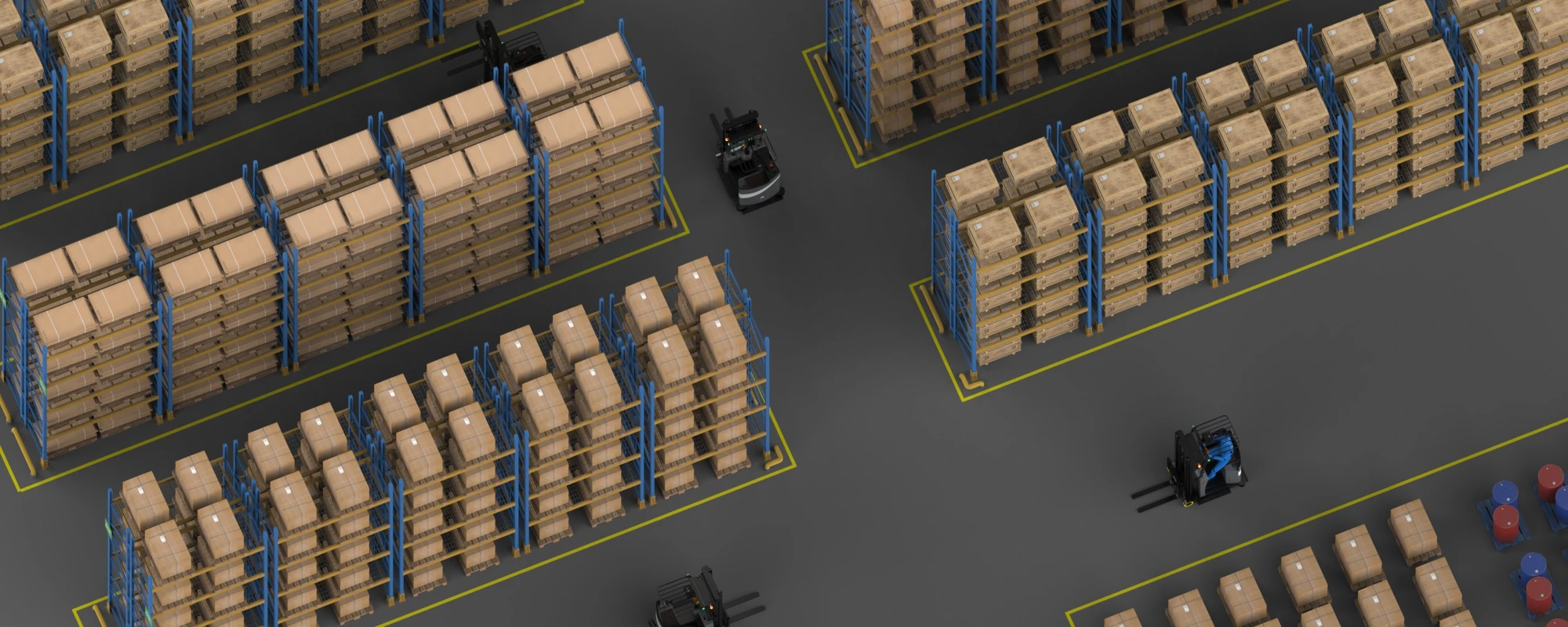

Flexible Moving and Scheduling

Its slender design and small radius of gyration are suitable for narrow aisles. Flexible scheduling – Seamless access to the scheduling system.

Superb Applicability

Proficient in climbing, crossing ridges, crossing elevators, carrying, and stacking.

Parameter Specification

-None            ● Standard            ○ Optional

Basic parameters
Product nameLaser SLAM Counterbalanced Autonomous Forklift

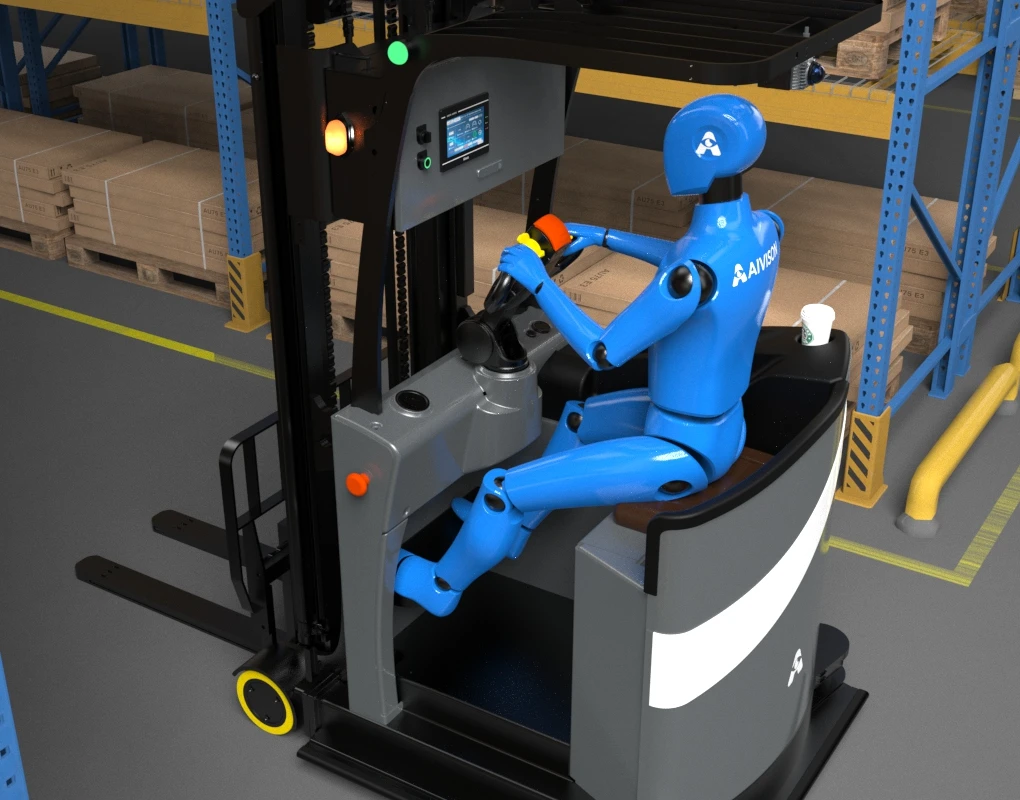

Operation typeAutomatic navigation, seated driving
Navigation typeLaser SLAM
Pallet typeOpen pallet / Closed pallet
Rated load capacity1500 kg
Load center distance500 mm
Weight (with battery)2325 kg
Standard lifting height3300 mm
Forklift dimensions: L × W × HP+F: 2520 × 1187 × 2346 mm / FREE: 2520 × 1187 × 2326 mm
Fork dimensions: L × W × H950 × 100 × 40 mm
Fork outer width215 mm ~ 750 mm
Minimum turning radius1511 + 200 mm
Performance parameters
Driving speed: full load / no load1.38 / 1.38 m/s
Passability (slope / step / gap)< 5% / 10 mm / 30 mm
Navigation position accuracy±10 mm
Navigation angle accuracy±0.5°
Battery parameters
Battery specifications24 V / 250 Ah (lithium iron phosphate)
Comprehensive Battery life10 h
Charging time (10% to 80% )2.5 h
Charging methodManual / Automatic
Function configurations
Lidar number1 (P+F R200 / FREE H1) + 3(FREE C2)
Wi-Fi roaming
3D obstacle avoidance
Pallet recognition
Cage stack
High shelf pallet recognition
Pallet stack
HMI display
Safety configurations
E-stop button
Sound and light indicator
Braking distance: 1m/s / 1.5 m/s≤30 cm / ≤50 cm
360° laser protection
Bumper strip
Fork height protection
