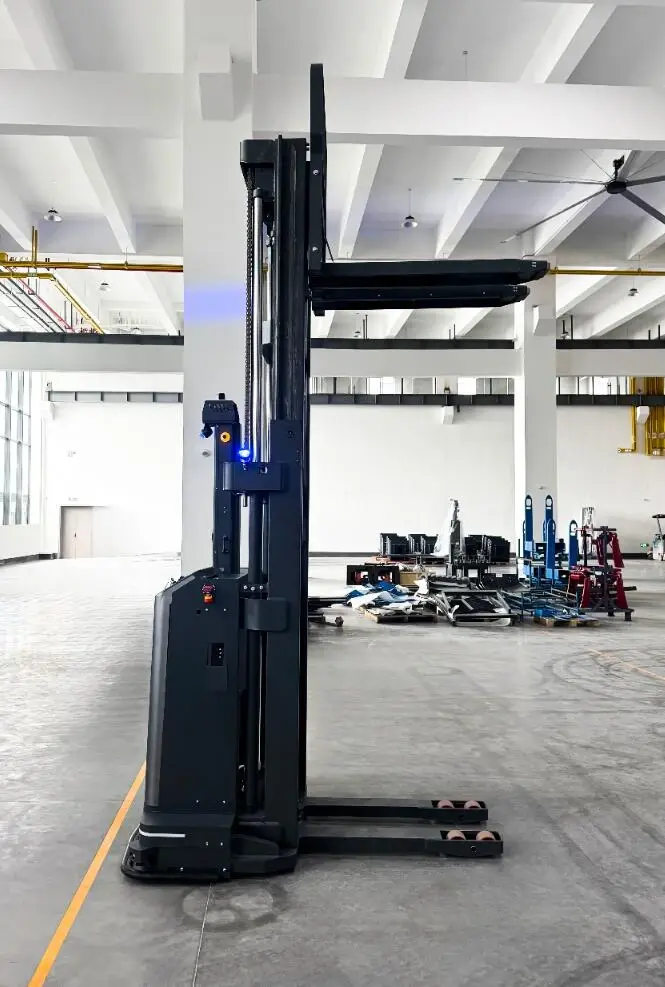

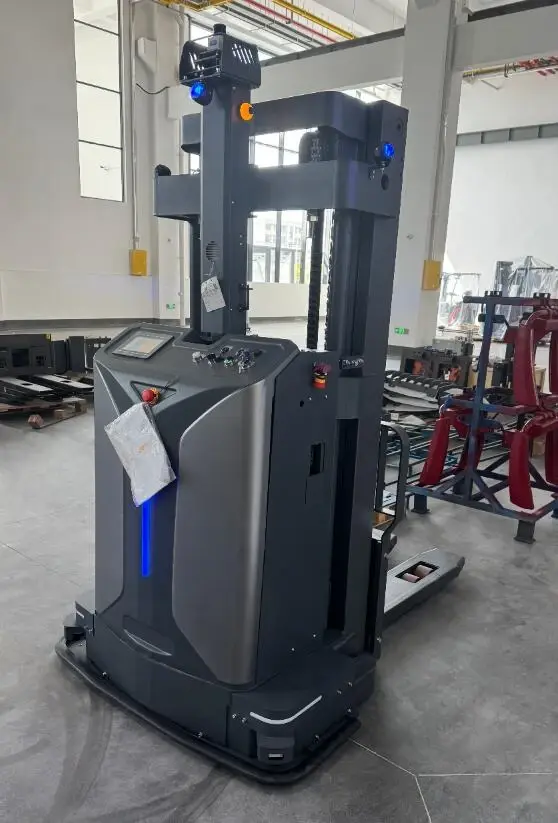

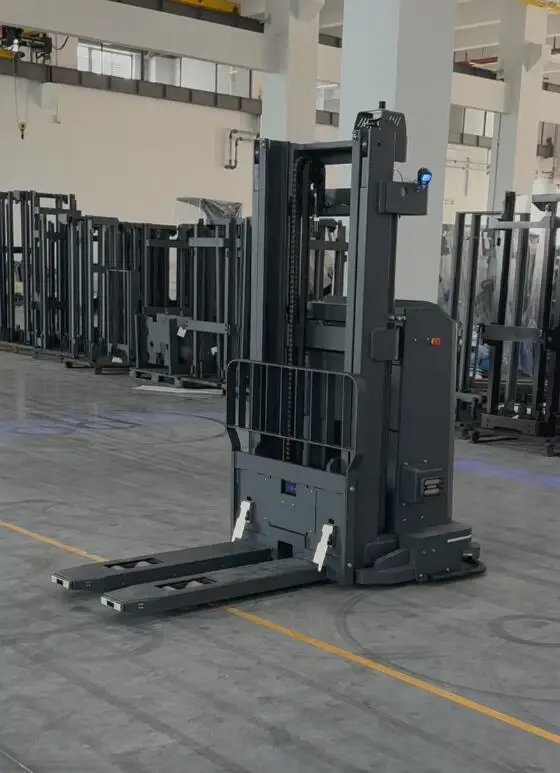

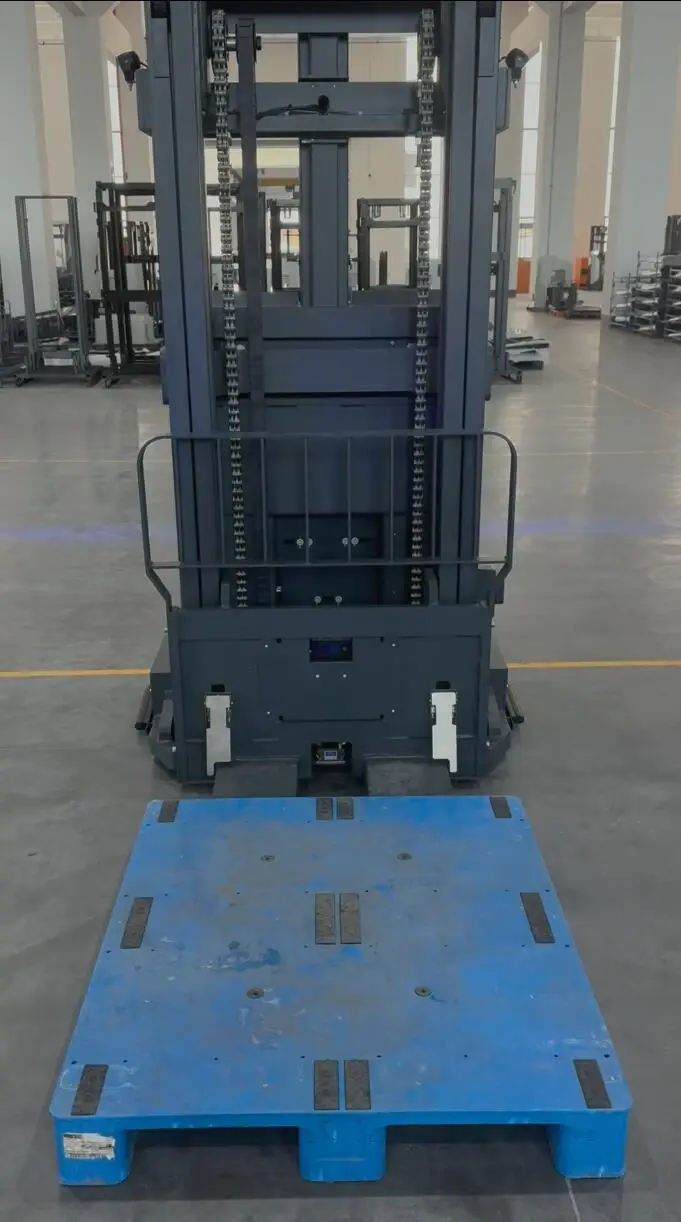

FD-3000R
3000 kg
Rated load capacity
600 mm
Load center distance
3000 mm
Standard lifting height
Open pallet
Pallet type

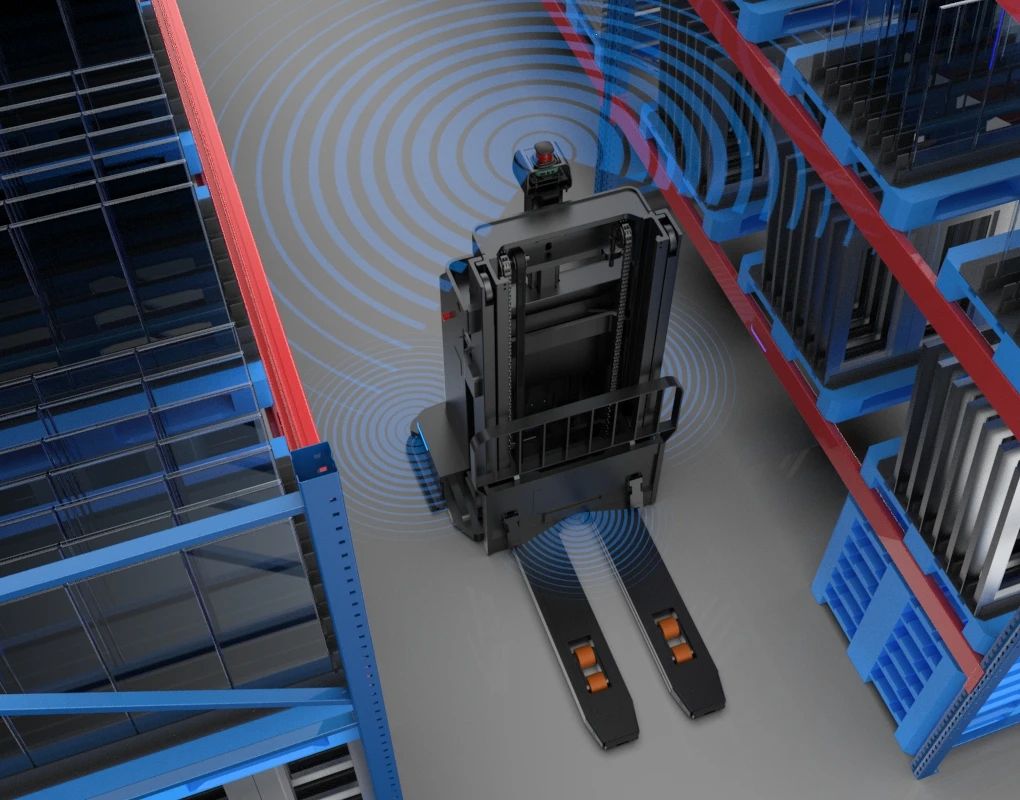

360° All-Around Safety

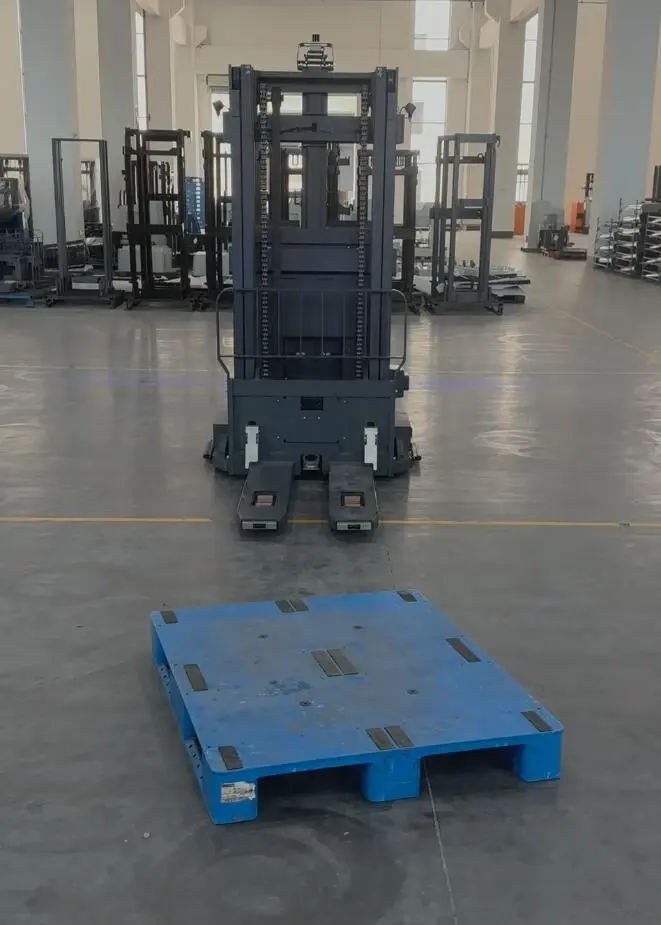

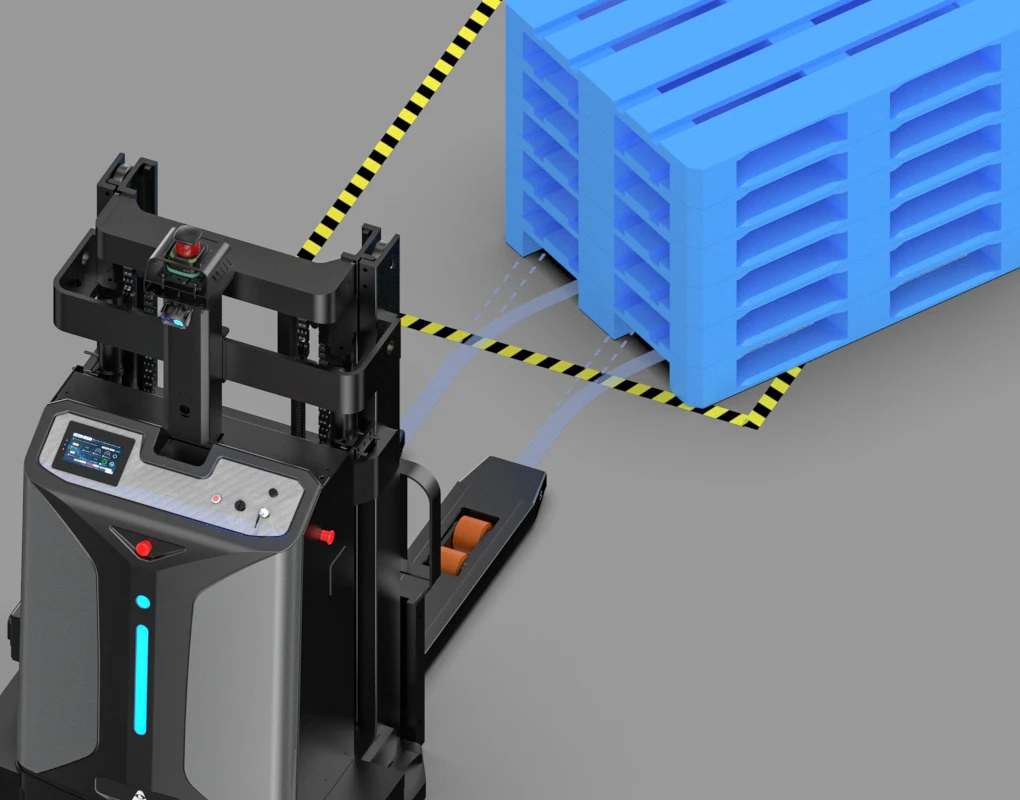

Intelligent pallet recognition
3D Visual Obstacle Detection System and Pallet Visual Recognition System.
Multi-Robot Collaboration
Fleet Management System
manage dispatching system for mobile robots and factory automation logistics equipment in a unified manner.
Get Rid of Empty Load Anxiety
Consider Hitchhiking and Pre-order Task Dispatching
High Adaptation
Dynamic Global Collaborative Planning
What You See is What You Operate
Panoramic Business And Scheduling Simulation
Keep Track of The Whole Progress
Visualisation of The Task Process
Intuitive and Simple UI Interaction
Mobile Terminal APP Configu ration Customisation
Easy to Handle
Robot Alert Handling
Parameter Specification
-None ● Standard ○ Optional
| Product name | Laser SLAM Stacker Automatic Forklift |
| Operation type | Automatic navigationdevice |
| Navigation type | Laser SLAM |
| Pallet type | Open pallet |
| Rated load capacity | 3000 kg |
| Load center distance | 600 mm |
| Weight (with battery) | 1860 kg |
| Standard lifting height | 3000 mm |
| Mast Extended Height | 3933 mm |
| Fork Ground Clearance (at lowest position) | 100 mm |
| Overall Length | 2143 mm |
| Overall Width | 1348 mm |
| Wheelbase | 1477 mm |
| Fork dimensions: L × W × H | 1150 × 240 × 70 mm |
| Fork outer width | 680 mm |
| Minimum turning radius | 1791 mm |
Related products
-

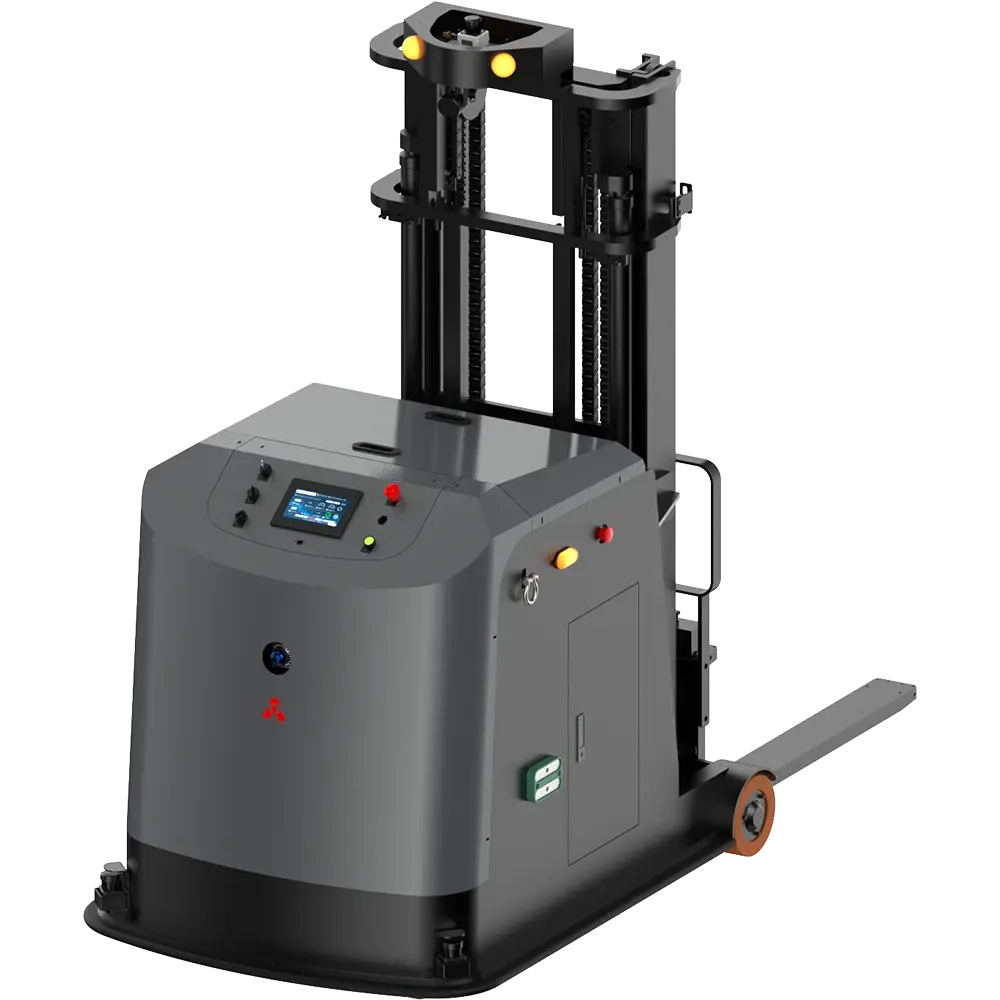

FP-2000Y
